Wiring Diagrams

Last updated February 6, 2003

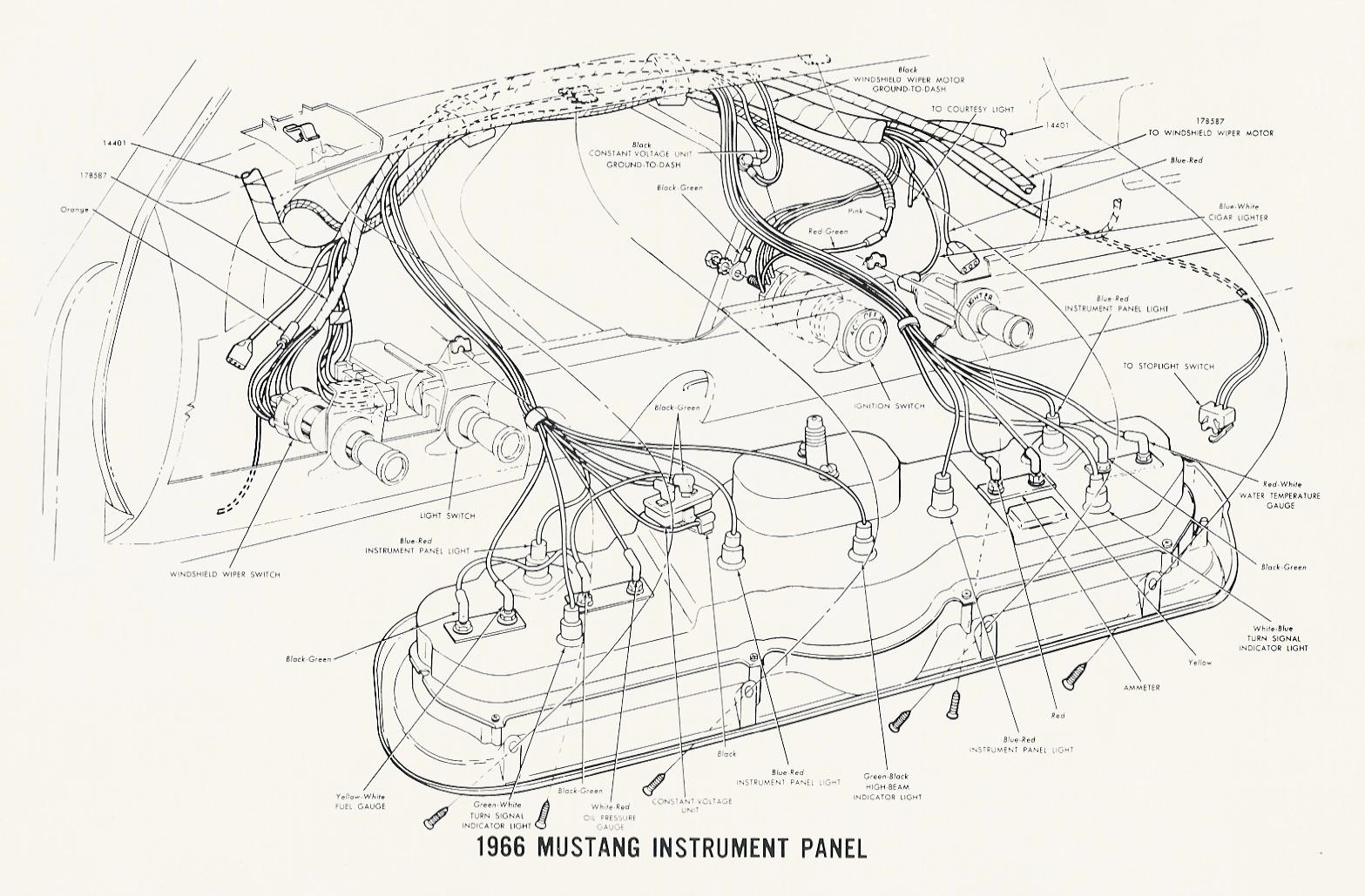

• 1966 Mustang Instrument Panel

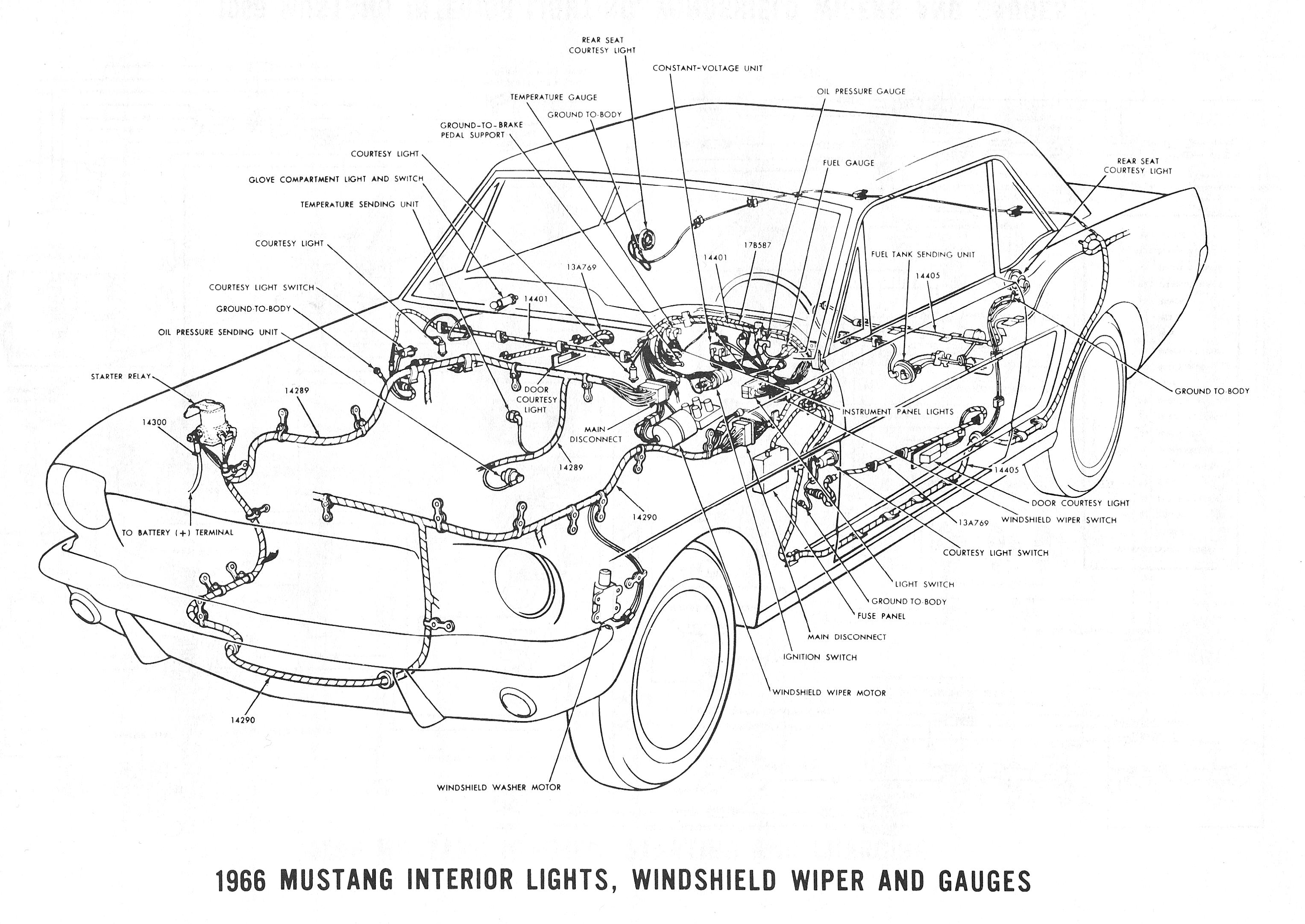

• 1966 Mustang Interior Lights, Windshield Wiper and Gauges (diagram)
• 1966 Mustang Interior Lights, Windshield Wiper and Gauges (schematic)

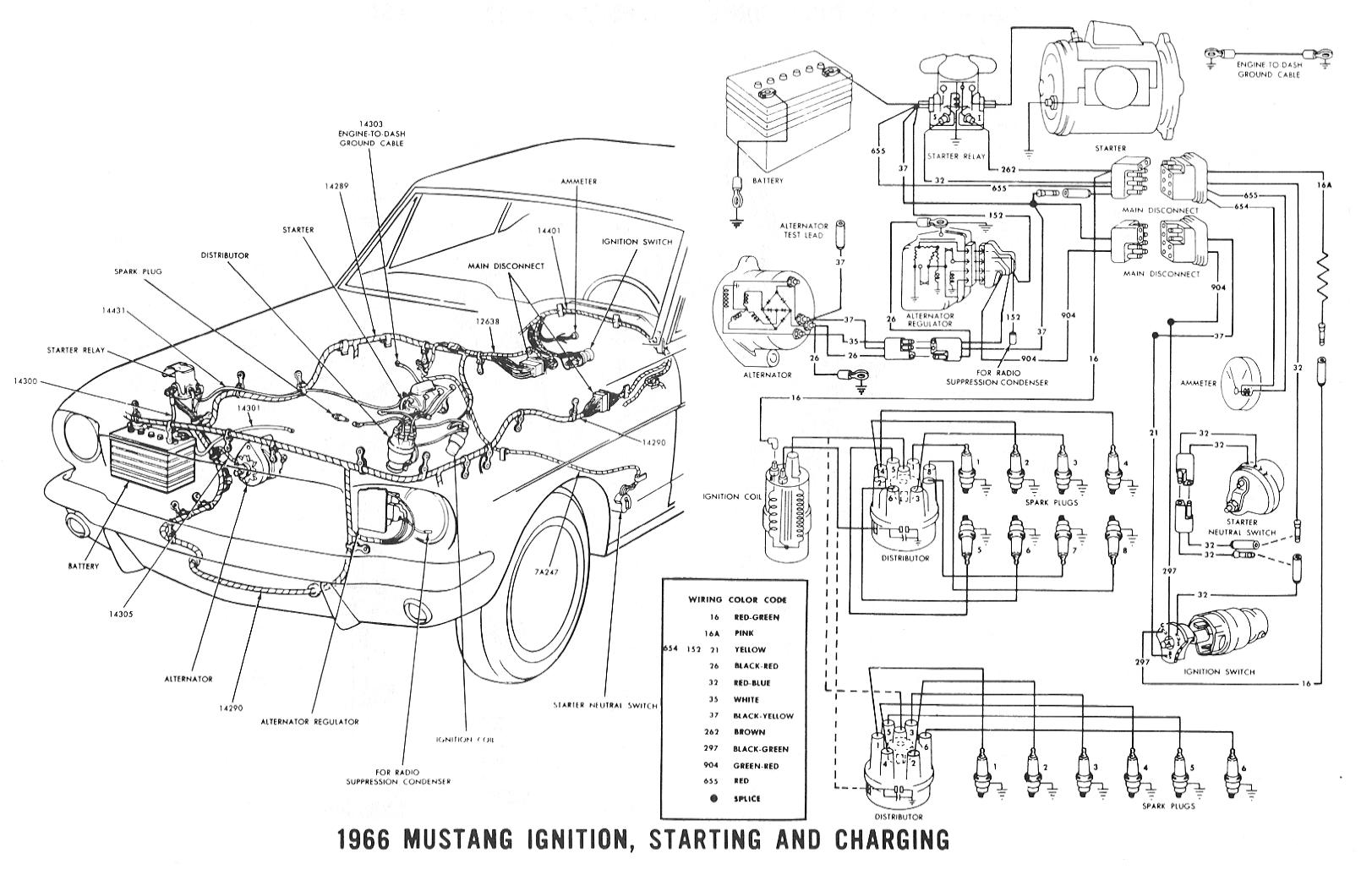

• 1966 Mustang Ignition, Starting and Charging

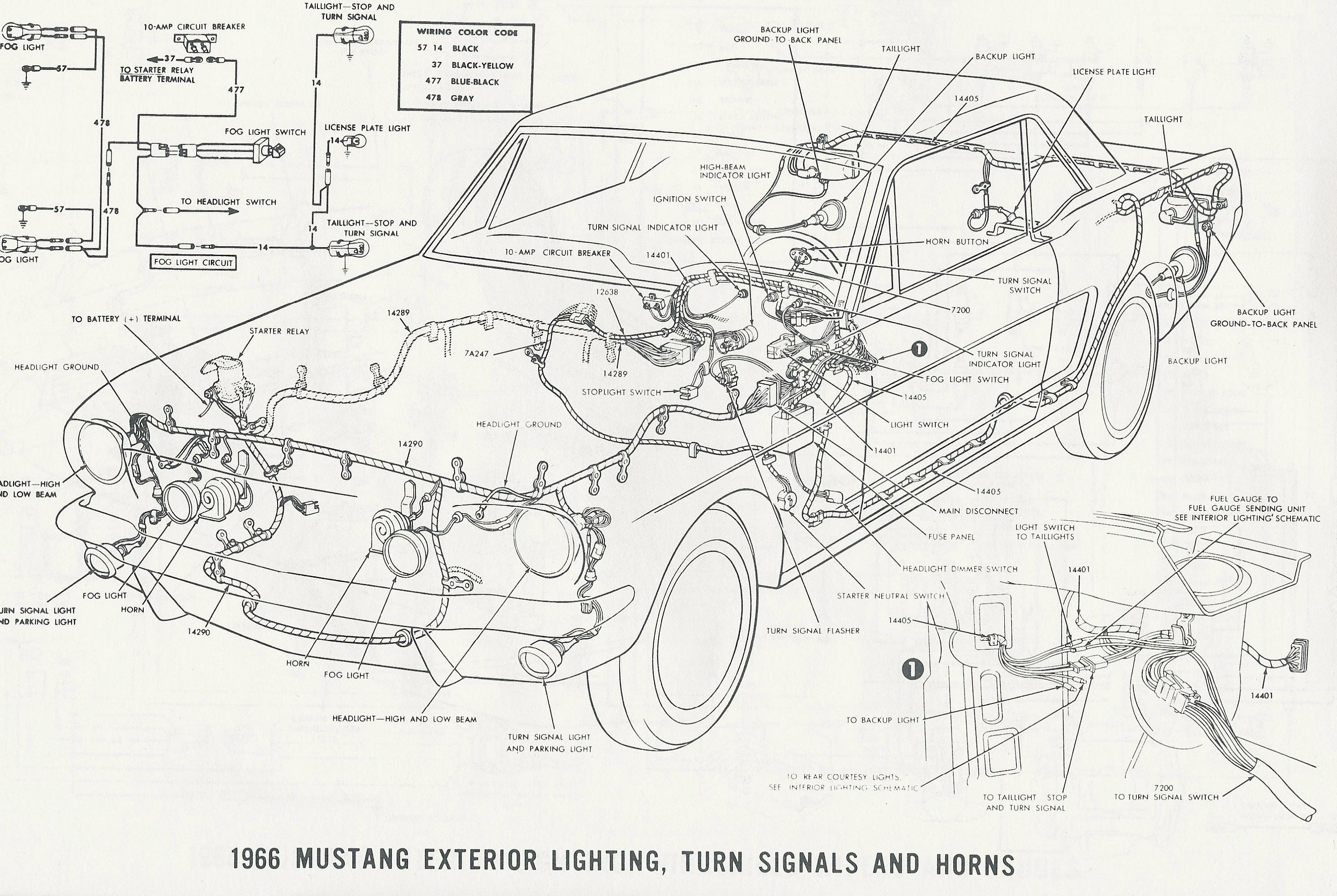

• 1966 Mustang Exterior Lighting, Turn Signals and Horns (diagram)

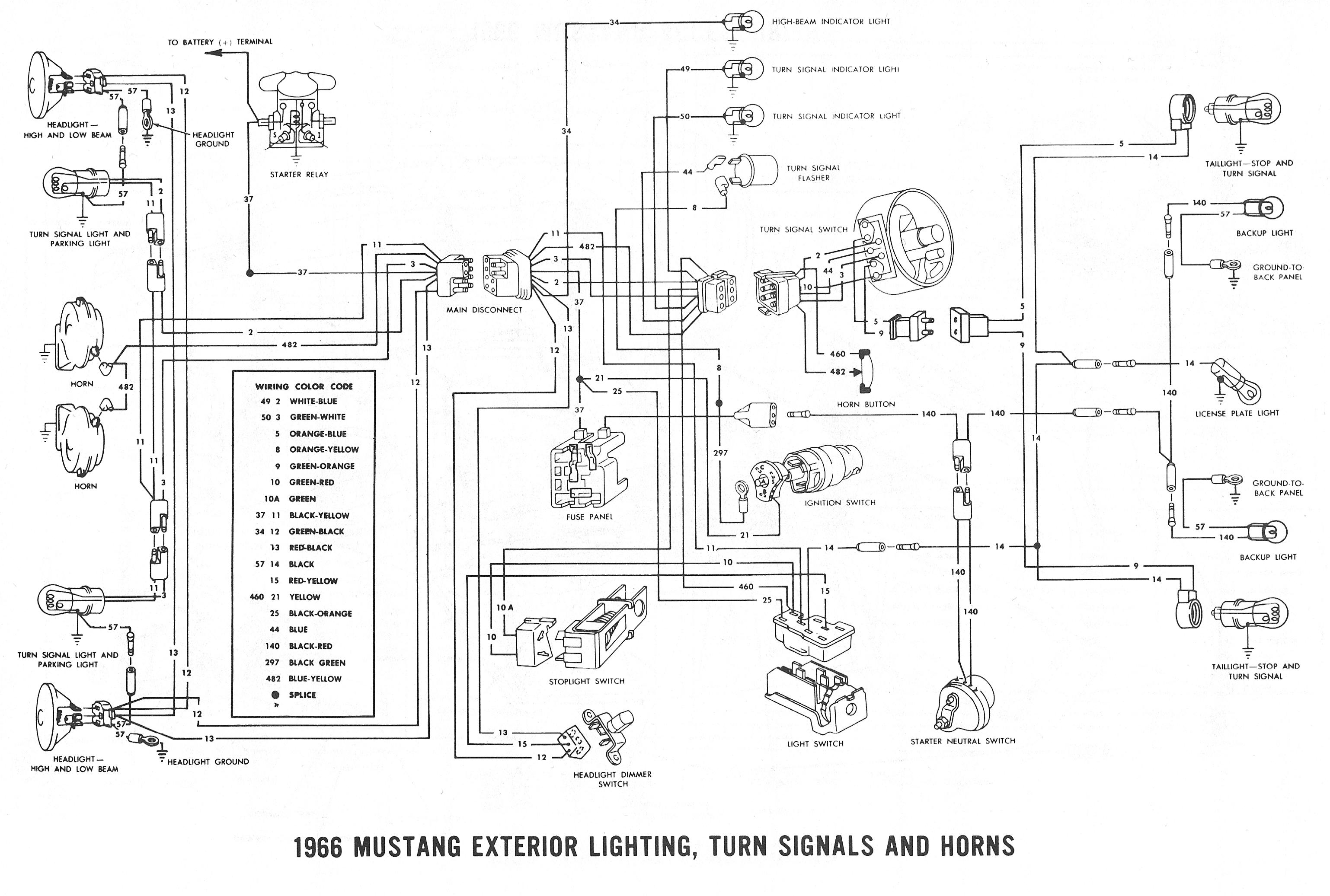

• 1966 Mustang Exterior Lighting, Turn Signals and Horns (schematic)

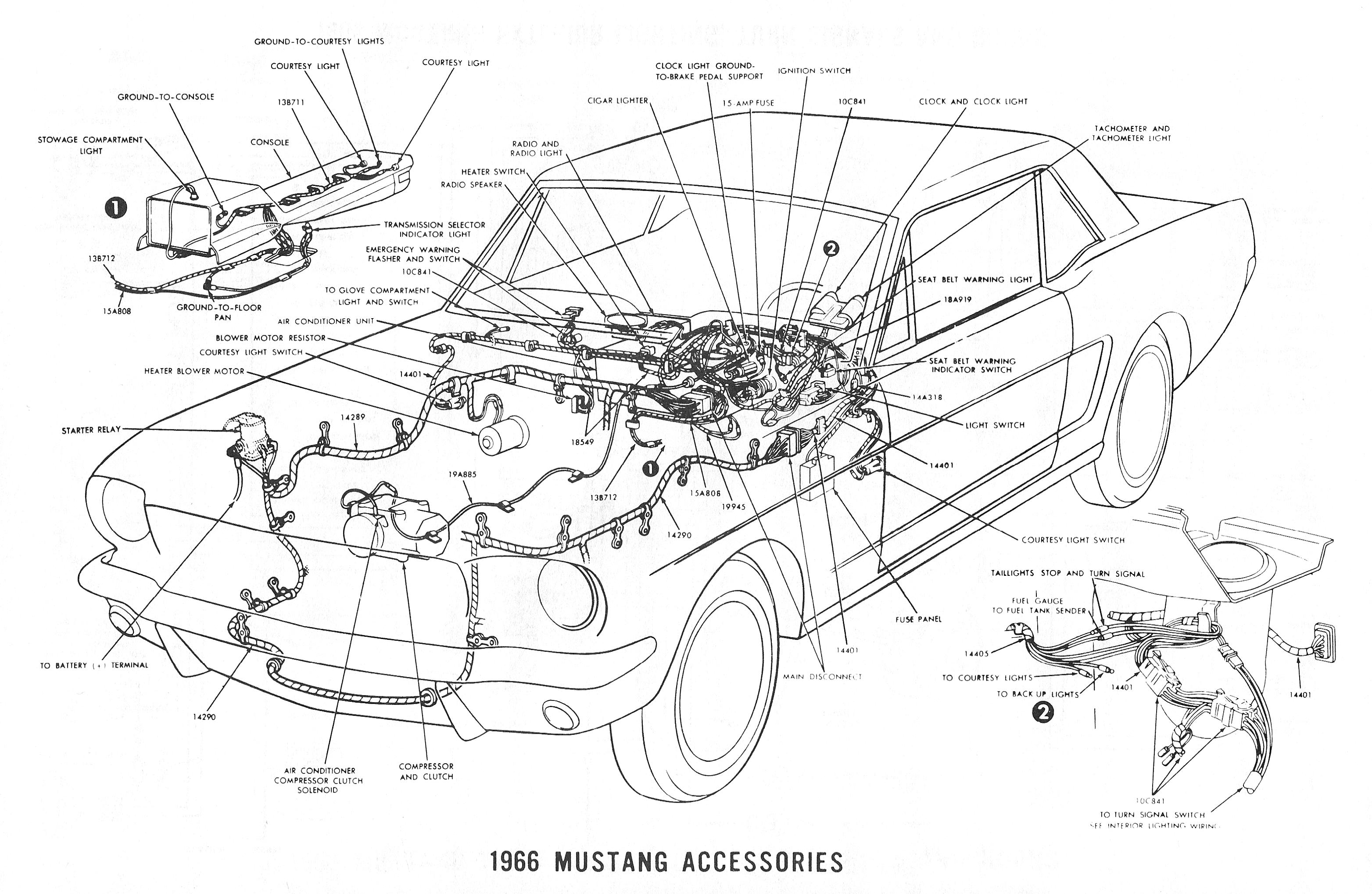

• 1966 Mustang Accessories (diagram)

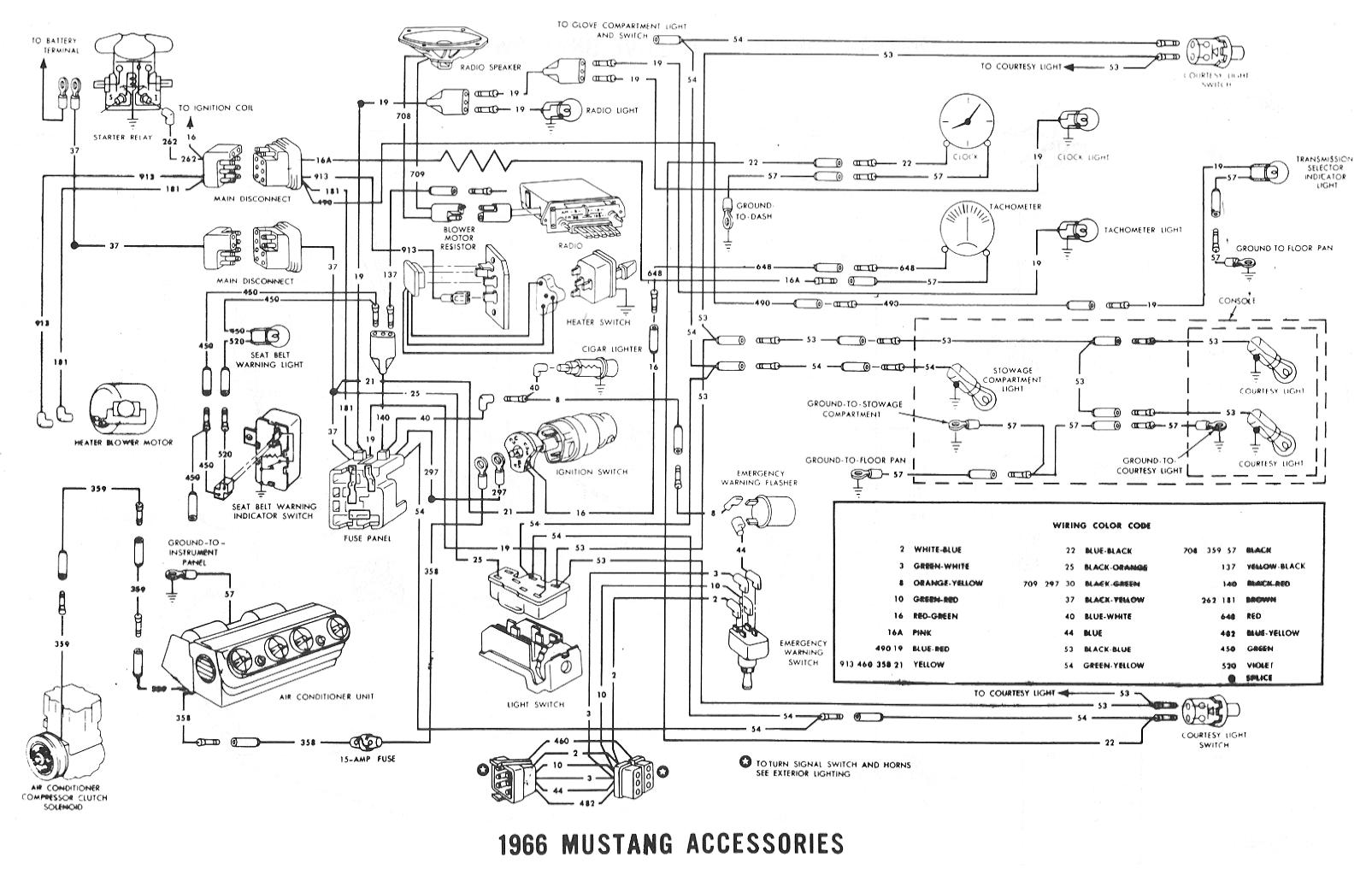

• 1966 Mustang Accessories (schematic)

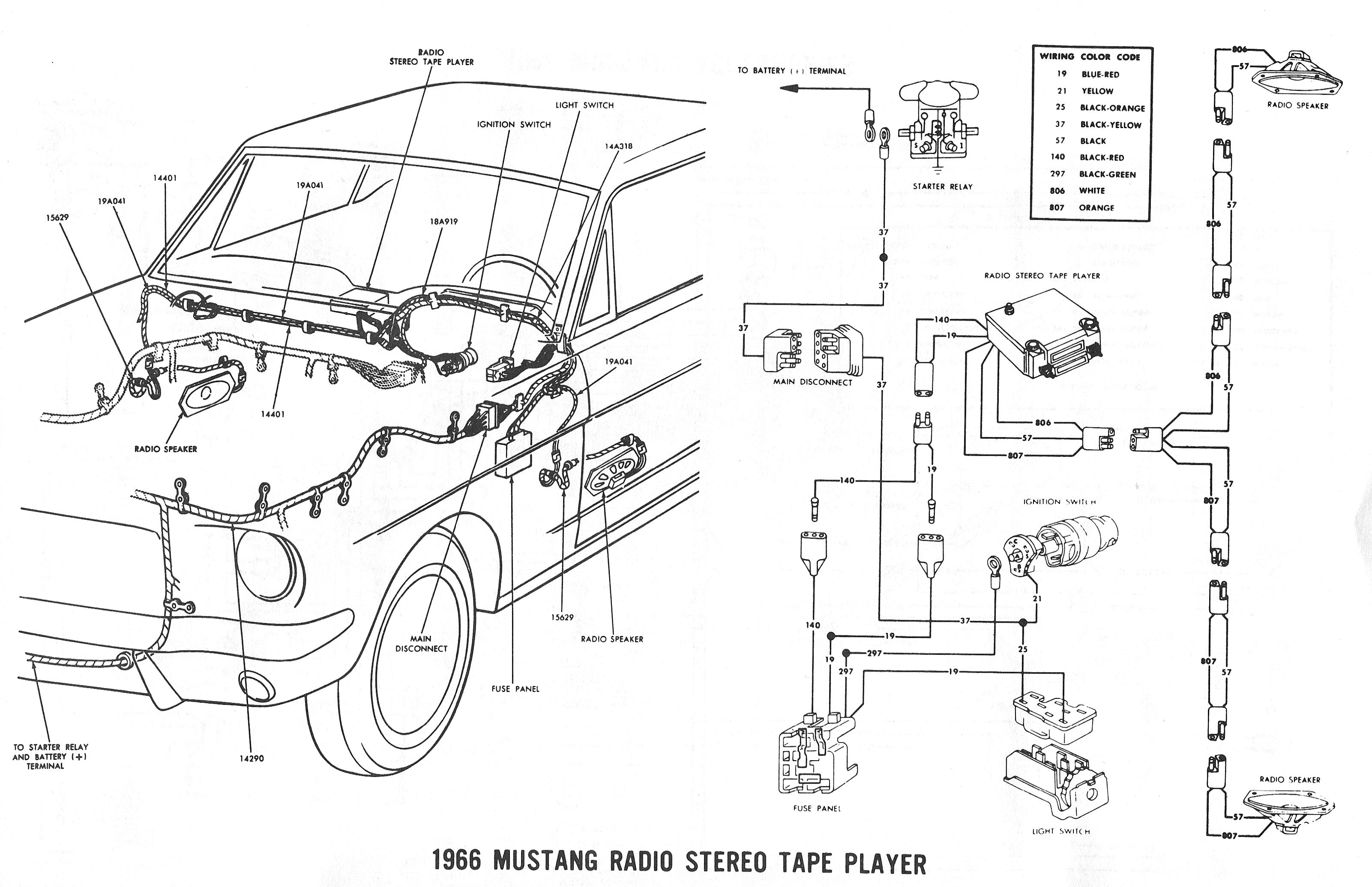

• 1966 Mustang Radio Stereo Tape Player

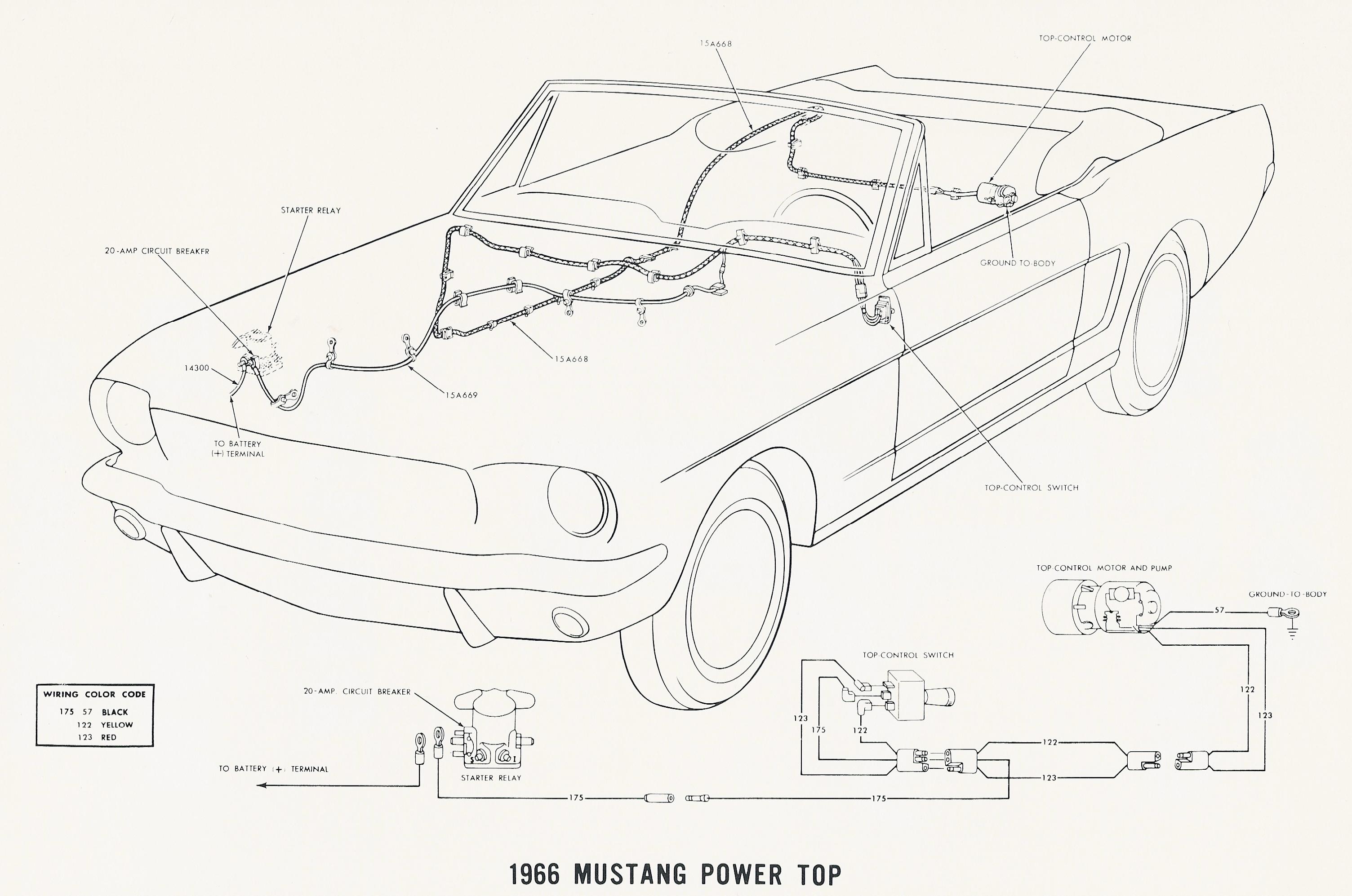

• 1966 Mustang Power Top

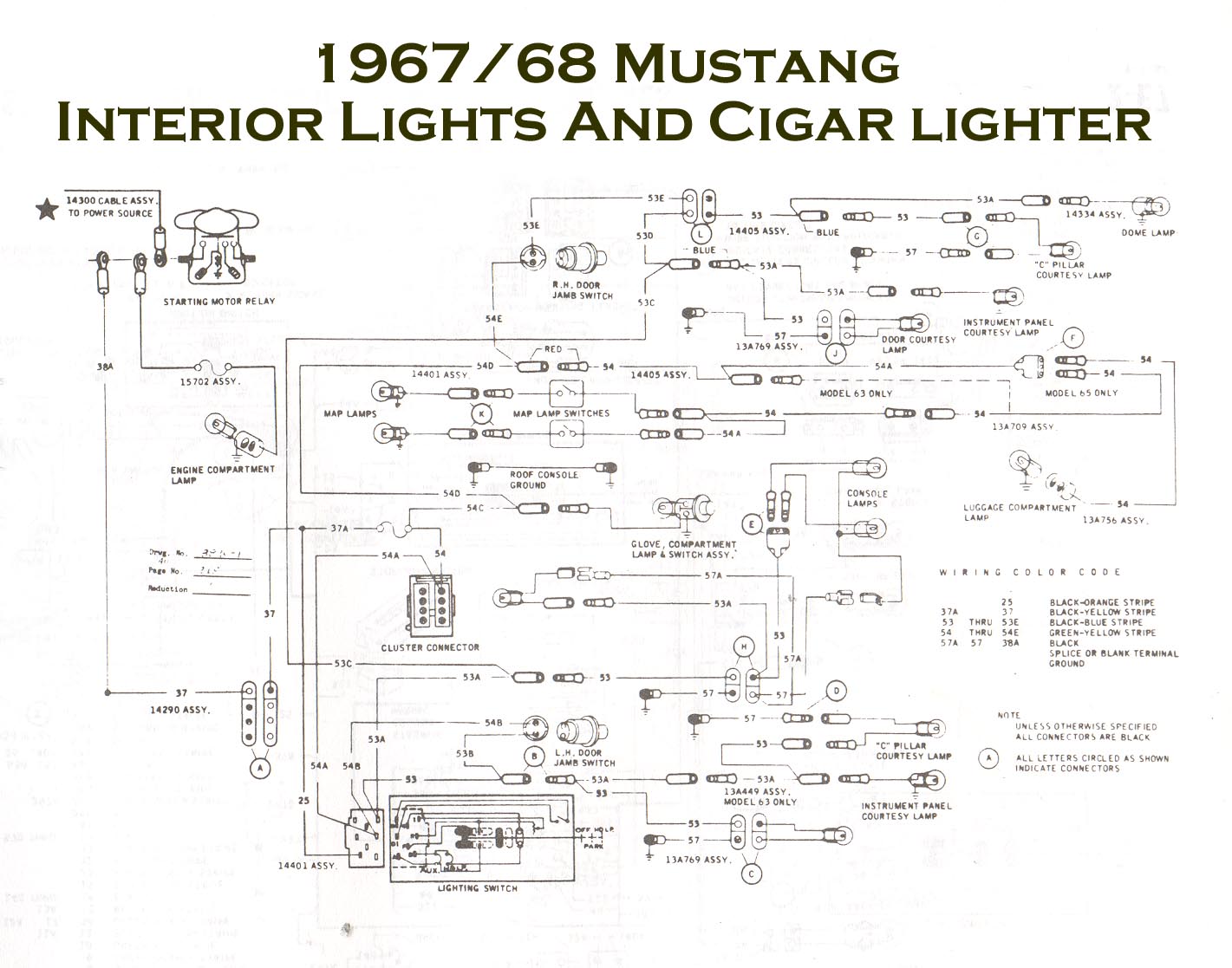

• 1967-1968 Console (diagram) (Thanks to VMFer sinpac)
